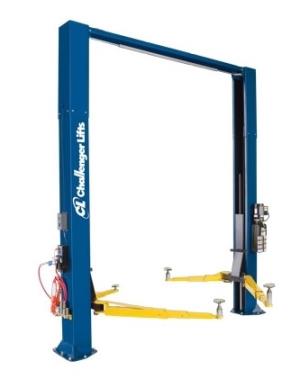

10K Versymmetric Two-Post Lift, Quick Cycle - 3 ft. Extended Height w/ EV Adapters

Item Number: CLFCL10AV3-3-QC-EV Supplier: CHALLENGER LIFTS INC

Description

Challenger Lifts' CL10AV3 model series is designed to tackle industry demands head-on, featuring Versymmetric® technology for efficient vehicle servicing. With 3-stage front and rear arms and directSPOT™ design, it offers precise first-try spotting, boosting productivity. Available in various configurations. Cl10AV3 series with options for speed and efficiency are tailored to meet specific service needs. The lift's adjustable features and a wide array of accessories make it the ultimate choice for forward-thinking shops. Upgrade to the CL10AV3 for reliability, safety, and unparalleled performance, backed by ALI® Certification.

The new upgraded CL10A series lifts provide three width configurations.

Narrow: Space Constraints or Express Pads configuration.
Universal: Cars, SUVs, Trucks, Most Electric Vehicles
Wide: Optimal for Cars, EVs, and Luxury vehicles

Features and Benefits

10,000 lbs. lift capacity
QuickCycle upgrade redefines efficiency, boasting an astonishing lift speed - rising in just 27 seconds and descending in 17 seconds.
Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lift both symmetrically and asymmetrically within the same service bay, maximizing service capabilities and revenue potential
Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on the equalization system and increases cable life
48 in. elongated carriage design increases lift life
Three settings for width adjustment, from 11' 6.5" to 12' 6.5"
The standard model fits a 12-foot ceiling height. Additional 2-foot or 3-foot extensions are available
A padded overhead shut-off system prevents vehicle damage
Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
Fully gusseted base plate design increases column rigidity
A pulley-less jacketed single-point lock release system makes for smoother, more effortless operation and longer life
Standard dual-integrated rubber door guards help protect vehicle panels from inadvertent damage
Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
Premium powder coat finish provides long-lasting durability
Must specify color at time of order. Available in Red, Blue or Black

Includes

CLFEVFPK Electric Vehicle Footpad Kit - designed to give a flat lifting surface (Set of 4). Required for Electric Vehicles.
CLF10313 (2) 6" Stack Adapters
CLF10315 Stack Adapter Kit
10316 - Adapter Caddies (2)
10320 Document Caddy
10321 Pendant Holder

Warranty

Click here for warranty information

Product Specifications

Adjustable Width Overall: 11' 61/2" - 11' 11"
Drive Thru Clearance: 8' 4" / 8' 81/2"
Floor to Overhead Switch: Standard: 11' 21/2" or 10' 81/2" with 2' or 3' extensions
Front Arm Reach: Min. 20” Max. 42”
Height of Columns: Standard: 11' 8" or 11' 2" with 2' or 3' extensions
Inside Columns: Min. 9' 2" Max. 9' 61/2"
Lifting Capacity: 10,000 lbs.
Low Lock Height: 12" Net Rise
Max Load per Arm: 2,500 lbs.
Max. Extended Cylinder Height: 11' 11"
Rear Arm Reach: Min. 375/8" Max. 60"
Rise Height: 74 1/8"
Rise Time: 24 seconds (est)
Screw Pad Height: Min. 37/8" Max. 61/8"
Standard Voltage: 3HP, 208v-230v, 60Hz, 1Ph

For more information see the BEV Required Equipment document which can be accessed via iN (SERVICE > Service Bay > BEV Required Equipment).
