Item shown may not be actual product.
Product and price information are subject to change without notice.

$994.00 *
*log in for dealer pricing

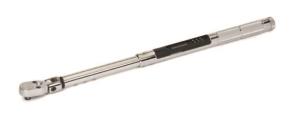

1/4" Drive Industrial Electronic Torque Wrench

Item Number: CTECH1FR240A Supplier: SNAP-ON TOOLS

Description

Torque Wrench, Electronic, ControlTech™, Industrial Flex Head, 1-20 ft.-lbs., 1/4" Drive

ControlTech™ Industrial Electronic Torque Wrenches are fully programmable for reliable and consistent torque application. The Torque plus Angle combo modes allow you to simulatenously complete precise "torque plus turn" specification in a single motion. In addition to the LED indicator lights, an audible beep and handle vibration alert you when target torque is achieved. The rugged all-steel construction is designed to stand-up to even the toughest work conditions.

Features

Torque and Angle combo modes provide the most accurate and fastest way to achieve torque plus angle in a single motion (patent-pending)
Calculates calibration factor automatically
Provides instant data on the exact torque actually applied - something mechanical wrenches can't do
Control torque accuracy to +/- 2% clockwise, +/- 3% counterclockwise
Control angle accuracy to +/- 1% of reading
Dual side LED indicator lights with configurable settings provide operational guidance
The easy-to-read LCD screen, LED indicator lights, audible beep and handle vibration work together to signal when torque is within the targeted range
Dual 80® technology provides precise yet strong ratchet function with minimal ratcheting arc and very little lost motion, allowing you to ratchet in tighter areas
Rugged all-steel body is designed to stand up to industrial use
Large LCD screen with backlight for better visibility in a variety of conditions
Time based calibration-needed indicator (patent-pending)
50 memory presets with batch count
Presets can be locked to prevent inadvertent changes or tampering
Fully programmable for reliable, consistent, repeatable torque application
Sequence programming and job mode
High storage capacity for 1,500 readings
Time stamped data trail for quality control, job auditing, and torque verification
USB downloadable data

Includes

Storage Case
3 AAA Lithium Batteries

Warranty

Two years

Product Specifications

Angle Accuracy: +/- 1% of Reading, +/- 1 Degree @ Angular Velocity > 10 Degrees/Sec. < 180 Degrees/Sec.
Angle Range: 0-360°
Batteries: 3 AAA Lithium are included
Gear Action: 4.5 Degrees
Gear Teeth: 72
Head Depth: 7/16" (11.11 mm)
Head Type: Sealed Flex Head
Head Width: 7/8" (22.23 mm)
Humidity: Up to 90% Noncondensing
Length: 14.1" (358.14 mm)
Number of Presets: 50
Operating/Storage Temperature: 0-130° F (-18 - 54° C)
Square Drive: 1/2"
Storage Capacity: 1500 Readings
Torque Accuracy: +/- 2% Clockwise, +/- 3% Counterclockwise
Torque Range: 1-20 ft.-lb. (12-240 in.-lb.) (1.4-27.2 Nm)
Weight: 1.97 lbs. (0.89 kg)
