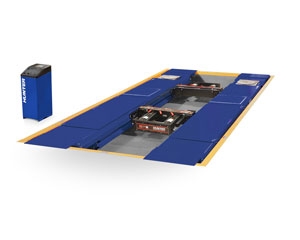

10,000 lb. Flush Mount Long Deck Scissor Lift, Stainless Steel Turnplates


Item Number: HUNRX10KLF    Supplier: HUNTER ENGINEERING COMPANY

NOTE: Available in Honda Blue, Acura Blue, and Red. Must specify color at time of order.

Description

10,000 lb. capacity flush mount long deck scissor lift, includes (2) 6,000lb Swing Jacks, and Stainless turnplates.

Features

  • Large capacity with a small footprint
  • 24 in. wide runways
  • Best in class drive on height
  • Integrated air line
  • Sensor feedback system
  • Velocity safety fuses
  • Safety locks
  • Movable work steps
  • Fast descent speed - 50% faster lowering times
  • Ensures a soft landing by automatically slowing the last several inches.
  • Swing Air Jacks - Lift vehicles off the runways during alignment procedures and other multi-service operations

Includes

  • (2) 6,000 lb. Swing Jacks
  • Stainless Turnplates
  • Louvered ramps

Warranty

Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.

Product Specifications

  • Air pressure: 90-150 psi (6.2 - 10.3 bar)
  • Alignment Height: All lock positions
  • Maximum Lifting Height: 72" (1829 mm)
  • Maximum Vehicle Weight: 10,000 lbs. (4536 kg)
  • Maximum Wheelbase - Four-Wheel Alignment: 158" (4013 mm)
  • Maximum Wheelbase - Two-Wheel Alignment: 175" (4445 mm)
  • Maximum wheelbase: General Service: 180" (4572 mm)
  • Minimum Four-Wheel Alignment: 88" (2235 mm)
  • Runway width: 24" (609 mm)
  • Speed: 55 seconds raise, 25-50 seconds descent
  • Tread Width - Maximum Outside: 88" (2235 mm)
  • Tread Width - Minimum Inside: 40" (1016 mm)
